Kanayama Lubricators – Detailed Product Introduction

Kanayama Precision Co., Ltd. is a Japanese manufacturer that specializes in lubricators—devices that automatically supply lubrication oil to engines, compressors, and industrial machinery. Their lubricators are especially essential in marine engines and manufacturing equipment, ensuring constant oil supply to reduce wear, improve operational efficiency, and prolong equipment lifespan.

Kanayama supports not only manufacturing and sales but also maintenance and overhaul services for their lubricators and related systems. Their product lineup includes low‑pressure and high‑pressure variants, sealed and open-type configurations, and a range of accessory components.

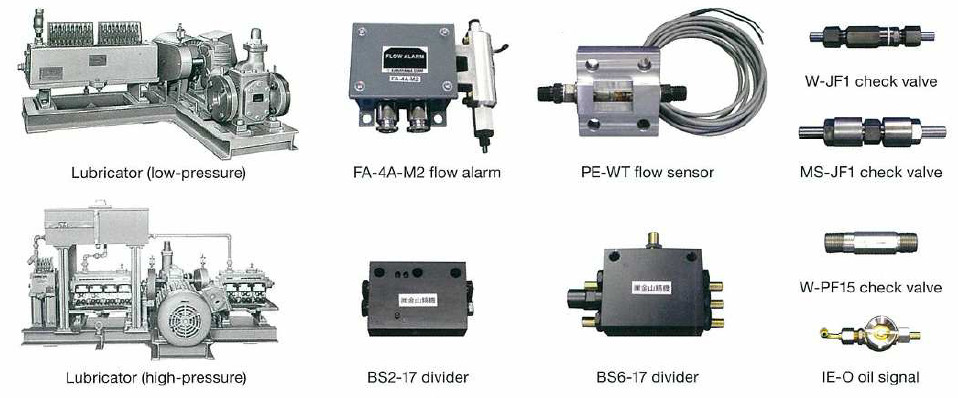

Types of Lubricators

1. Low‑Pressure, Open Type Lubricators

Designed for applications with minimal pressure demands. These are easier to install and maintain where sealing is not critical.

2. Low‑Pressure, Sealed Type Lubricators

These feature enclosed systems to prevent oil leakage and contamination, suitable for many standard industrial applications.

3. High‑Pressure, Sealed Type Lubricators

Designed for heavy-duty engines and high-load equipment that require reliable oil supply under pressure.

4. Related Components

• Pump Elements (ML / MM series)

• Check Valves (for both low and high pressure)

• Flow Sensors

• Flow Alarms

• Oil Signal Indicators

• Distributors

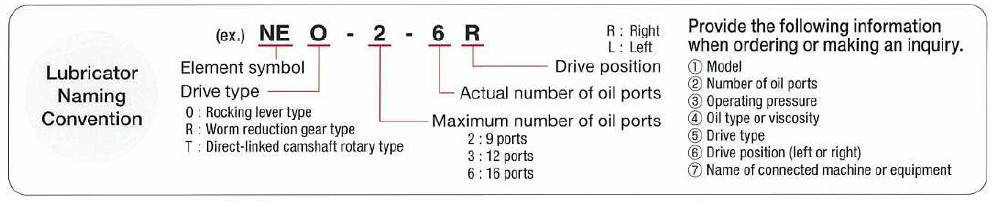

Product Model List

Main Lubricator Units

Pump Element Components

Other Accessories

• High‑Pressure Check Valve

• Low‑Pressure Check Valve

• Flow Sensor

• Lubrication Stop Alarm

• Oil Signal Indicator

• Oil Distributor

Key Product Features

Industrial Durability

Kanayama lubricators are engineered for tough environments like marine engine rooms and continuous factory operation. They are built with sturdy materials and high‑tolerance machining to ensure reliability.

Accurate Oil Delivery

Their pump systems deliver oil at precise flow rates and pressure levels, adaptable to specific application requirements.

Modular and Serviceable

With removable components and a modular system design, the lubricators are easy to install, maintain, and upgrade. Overhaul services are available directly from the manufacturer.

Custom System Integration

These lubricators can be adapted and integrated into broader industrial systems, making them ideal for custom machinery and large‑scale applications.

Applications

Kanayama’s lubricators are commonly used in:

• Marine Diesel Engines – Ensuring critical lubrication for large engines during long voyages.

• Industrial Compressors – Supplying consistent lubrication in high‑pressure systems.

• Automated Manufacturing – Lubricating robotics, gear drives, and rotating assemblies.

• Custom Machinery – Built-to-spec applications where lubrication must be automated and fault‑tolerant.

Conclusion

Kanayama Precision offers a full range of lubricators and related components, tailored for both standard and custom industrial environments. Their experience in the field, combined with Japanese manufacturing precision, makes them a trusted partner for lubrication systems in demanding applications. Their ongoing support in maintenance and overhaul further extends the operational life and reliability of the systems they supply.

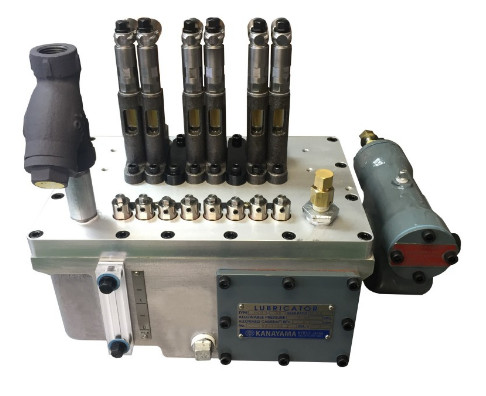

PER‑8B – Low‑Pressure Sealed Lubricator (Oil Injector)

PER‑8B is a low‑pressure sealed type lubricator designed for automatic oil supply in industrial lubrication systems. It features a sealed self‑feeding lubrication tank that enables smooth automatic replenishment when connected to an elevated oil reservoir, eliminating frequent manual refilling and reducing the risk of lubricant shortages.

Key Specifications

• Type: Low‑pressure sealed lubricator

• Discharge Pressure: Up to approximately 7.84 MPa

• Oil Delivery per Stroke:

  • φ7 plunger: 0.06 – 0.36 cc per stroke

  • φ5 plunger: 0.03 – 0.19 cc per stroke

  • φ3 plunger: 0.01 – 0.07 cc per stroke

• Element Installation: 1 to 24 elements

• Oil Supply Method: Self‑feeding type

Features

Sealed Self‑Feeding Design
The lubricator tank is completely sealed, preventing leakage and contamination. By connecting a single pipe from a higher oil reservoir to the lubricator, oil is automatically supplied to the system without manual topping‑up.

Prevents Refill Forgetfulness
Automatic replenishment significantly reduces the risk of accidental lubricant shortage and removes the need for frequent manual refill tasks.

Simple yet Reliable Structure
The sealed construction is straightforward yet robust, ensuring long‑term reliability in industrial environments.

Easy Air Venting
The lubricator includes a simple air release valve that must be used only once during initial installation, simplifying setup and maintenance.

Typical Applications

The PER‑8B lubricator is suitable for use in various industrial lubrication scenarios, including:

• Diesel engine lubrication systems

• Film manufacturing tenter frame lubrication

• Large compressors

• Mid‑load bearings in kneaders and rolling mills

These applications benefit from continuous, automatic lubrication that ensures smooth operation and helps prevent wear, overheating, and premature failure.

Summary of PER‑8B Advantages

Conclusion

The PER‑8B low‑pressure sealed lubricator from Kanayama Precision Co., Ltd. is an efficient and reliable automatic oil injector designed for demanding industrial lubrication needs. Its sealed, self‑feeding design eliminates manual refill work and reduces lubricant supply failures, making it well‑suited for engines, compressors, and various industrial machinery.
