Maeda Koki MKK type OIL SIGNAL

Home > Manufacturer > MAEDA KOKI > Oil Signal >

MKK type OIL SIGNAL

  [ Flow is visible at a glance ] is a current detector to check the flow of fluid in the movement of the ball of the transparent tube (or float). 　 Flow rate can not be confirmed. [ Mounting orientation does not matter ] attitude of when mounting because it uses a spring inside the upward and downward and 　 can be done sideways, etc. freely. ※ It is copper tube only.
　


　



Model List

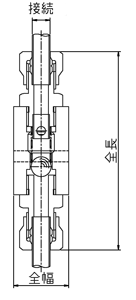

 Model     Dimensions (mm) The maximum flow rate
(L / min)
 Connection full length  Full width
MKK15-4 φ4 62 Fifteen 0.6
MKK25-4 φ4 86 twenty five 1.5
MKK25-6 φ6 88 twenty five Three
MKK25-8 φ8 Ninety twenty five Five
MKK25-10 φ10 95 twenty five Five
MKK30-10 φ10 110 Thirty Ten
MKK30-12 φ12 117 Thirty Ten

Standard specification
 fluid oil
 Connection See above
 Heatproof temperature Maximum 80 ℃
 Breakdown 1MPa
Material Transparent tube acrylic
Fittings C3604 (brass)
 Hexagon cap nut C3604 (brass)
spring SUS304
Nylon ball Nylon 66
 Chuck sleeve Cu
