MKTV type AIR SIGNAL

  [ Flow rate can be seen with the naked eye ] because you are using a transparent tapered tube, with a display red line ball (or float) 　 it is possible to check the approximate flow rate by looking at the relationship between position. [ Flow rate with adjustable valve ] to adjust the miniature valve, by aligning the position of the display the red line the ball 　 is possible to set the required flow rate of. [ Mounting orientation does not matter ] attitude of when mounting because it uses a spring inside the upward and downward and 　 can be done sideways, etc. freely.
　


　


　



Model List

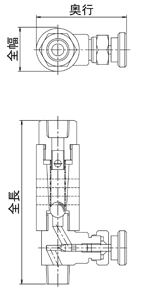

 Model     Dimensions (mm)  The maximum flow rate
(L / min)
 Connection full length  Full width  Depth
MKTV25-1TA  RC1 / 8 94 twenty five 51 150
MKTV25-2TA Rc1 / 4 94 twenty five 51 150
MKTV25-3TA Rc3 / 8 99 twenty five 51 200
When ordering, quote □ Please specify the inside of.　
Model
MKTV □□ - □ TA		  Regular flow rate □ L / Min
Example: MKTV25-2TA regular flow rate 100L / Min ※ model in the case of the connection R male thread will be MKTV25- □ TOA. Example: MKTV25-3TOA standard specification



 fluid gas
 Connection Rc female thread  Changes to the R male thread
combination with R male thread is also available.
 Heatproof temperature Maximum 80 ℃ -
 Breakdown 1MPa -
Material Transparent tube acrylic -
Fittings C3604 (brass) -
spring SUS304 -
Nylon ball Nylon 66 You may need to use a cylindrical float.
 Miniature valve BC  -
 O-ring Nitrile rubber  -
